รายละเอียดสินค้า:
|
| ชื่อ: | 3M 410M เทปเคลือบสองชั้น | ความกว้าง: | 305 มม. หรือแบบกำหนดเอง |
|---|---|---|---|
| ความยาว: | 33m หรือกำหนดเอง | รูปร่าง: | ที่กำหนดเอง |
| ติดแน่น: | ยางธรรมชาติ | 404 Not Found: | ทนความร้อน |
| ความหนา: | 0.15 มม | สี: | ชัดเจน |
| ไฮไลต์: | เทปกาวสองหน้า 0.15 มม.,เทปกาวสองหน้า 410 ม.,เทปกาวสองหน้า RoHS |
||

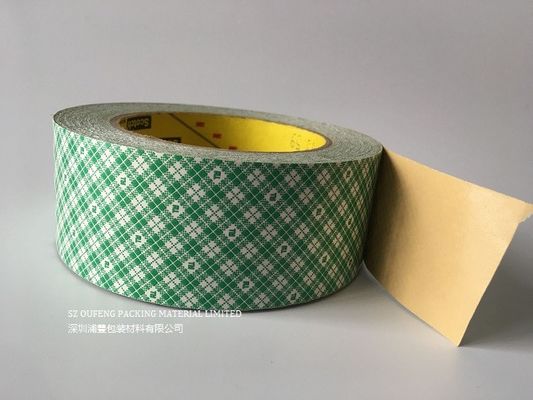

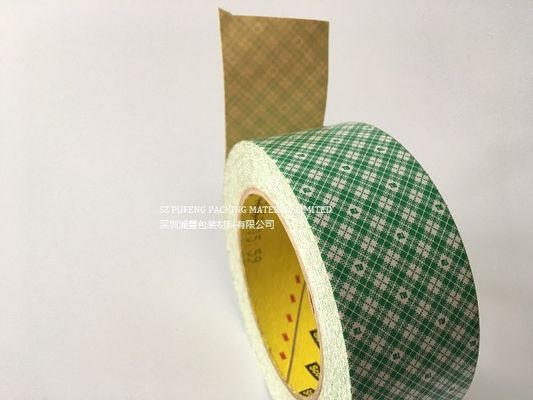

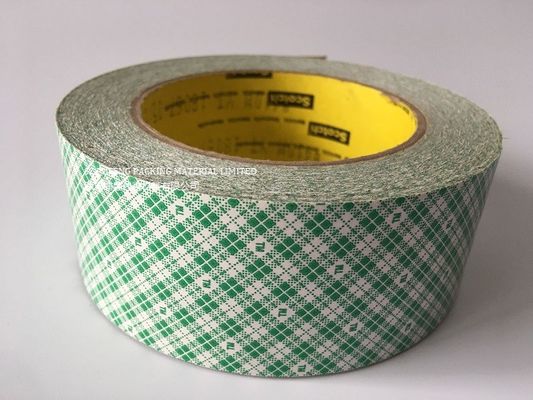

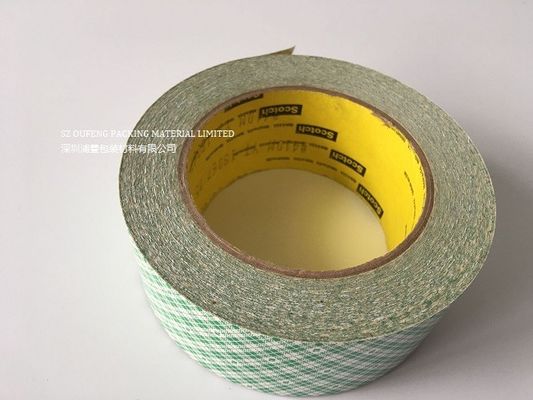

3M 410M double sided tape thick 0.15MM Paper Making Tape for wide application
Description
3M Double Coated Paper Tapes 410M utilize a natural rubber adhesive system that offers good to excellent adhesion to many types of surfaces.
Environmental Advantage
These products use a solvent free manufacturing process.
Performance
| Adhesive Family | 880 | Adhesion to steel | 50 oz. / in. (56 N / 100 mm ) |
| Adhesive Type | Natural Rubber | ASTM D 3330 modified 90°peel. 72 hr. RT dwell |
|
| Adhesive Carrier | Treated Paper | ||
| Tape Color | Off-white | Relative High Temperature | 150 °Ϝ ( 65 ℃ ) |
| Liner Color | Green Plaid Paper | Operating Range Long term ( days. weeks ) |
|
| Approximate Thickness | 0.006 in. ( 0.15 mm ) |
||
| Tape Thickness ( without the liner ) |
|||
| Short Term ( minutes. hours ) | 200 °Ϝ ( 93 ℃ ) |
||
| Liner Thickness | 0.003 in. ( 0.075 mm ) |
Relative Solvent Resistance | Medium |
| U. V. Resistance | Good |
Bond strength is dependent upon the amount of adhesive-to-surface contact. Firm
application pressure helps ensure better adhesive contact and improve bond strength.
To obtain optimum adhesion, the bonding surfaces must be clean, dry, and uniform.
Some typical surface cleaning solvents are isopropyl alcohol or heptane.*
Ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial
tape application to surfaces at temperatures below 50°F (10°C) is not recommended
because the adhesive becomes too firm to adhere readily. However, once properly
applied, low temperature holding is generally satisfactory.
*Note: When using solvents, extinguish all ignition sources, including pilot lights,
and follow the manufacturer’s precautions and directions for use.
Application Idea
• Splicing and core starting of papers, foils, films, fabrics etc.
• Mounting rubber or photopolymer printing plates to print cylinders.
• Attaching of golf club grips.
• Temporary holding while parts are being finished in the milling process.
Our Services
1. Your inquiry related to our product will be replied within 12 hours.
2. OEM or ODM projects are highly welcome.
3. We can die cut or design the products according to your requirements.
4. Perfect after-sale service offered,please contact us if you got question.
5. Packing as your request and promptly delivery
FAQ
1) How to order from PUFENG?
Just send us email or call us.
2) Do you offer the free sample for testing?
Yes, we offer thee samples for free.
3) How to ship the order?
We will suggest you the appropriate way of shipment, by sea, by air or by courier. Of course if you will have your own forwarder, that is no problem.
4) Can we trust the quality of product from PUFENG?
Sure, do not worry about that. Our quality wills absolutely compliance to the sample we send. If not, we will take charge of that.
5) What payment PUFENG accepts?
For the small quantity, we request 100% advanced TT payment; other conditions, negotiable.
6) How about the lead time of per order?
If the tape you order have stock, we can ship out within 1~3 days.
If die-cuts requested, the lead time shall be according to the quantity.
